How to build 3 Line Mixer (circuit diagram)

recent searches: disco light circuit, AM audio Transmitter, Capasitor discharge ignition unlimited, visual basic control motor, battery power high volts, infrared security alarm system, 100 power amplifier with bassboost, tda 2003, 50watt bass amplifier, 12v dc power supply fm receiver,

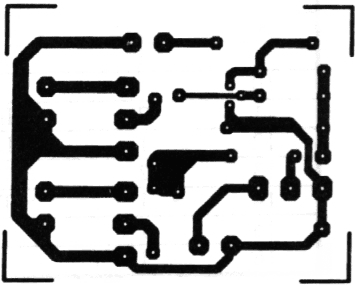

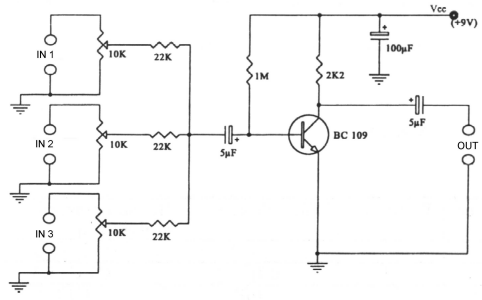

	How to build 3 Line Mixer This project is a 3 or more lines mixer. For more than 3 inputs you can repeat the input parts (P=10K R=22K). It powered with 9Vdc. circuit diagram Componets Layout PCB (5,5cm x 4,4cm) Author: Email: Website: http://www.electronics-lab.com Similar diagrams Portable Mixer FET Audio Mixer 3 Line Mixer
