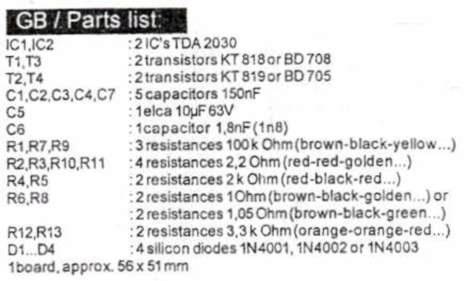

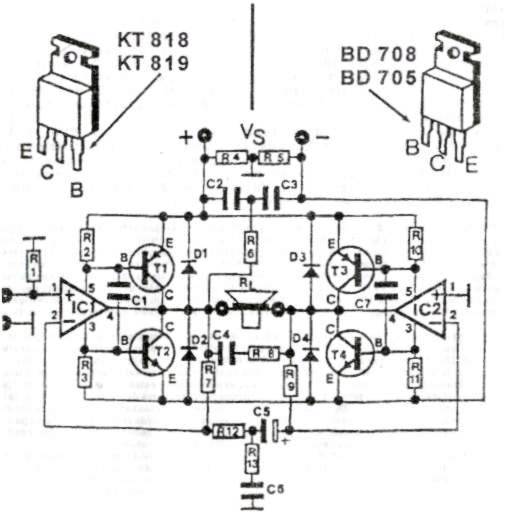

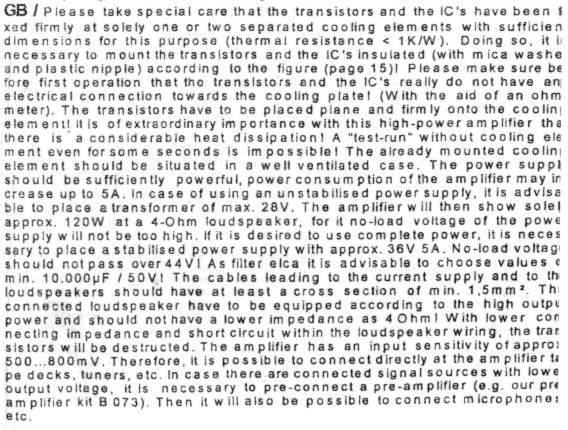

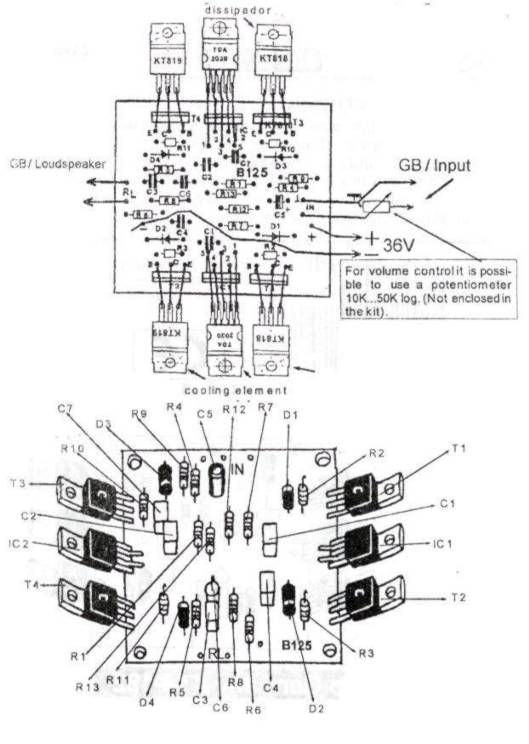

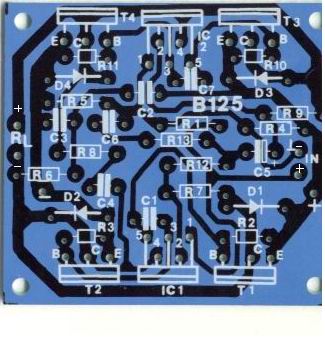

How to build 200W audio amplifier

power supply circuit diagram for download
power.zip

Author: Kemo Kits
Email: steve_filianos@hotmail.com
Website: http://www.electronics-lab.com
